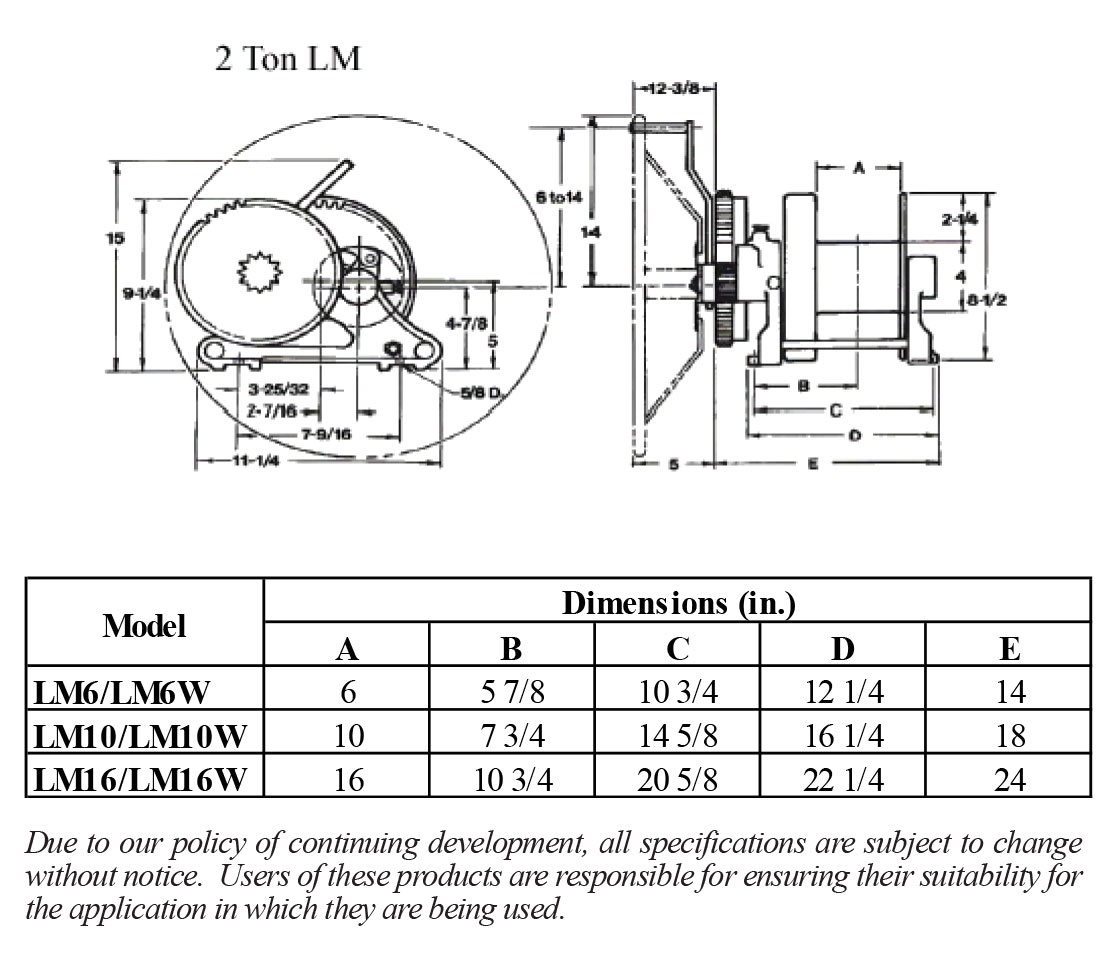

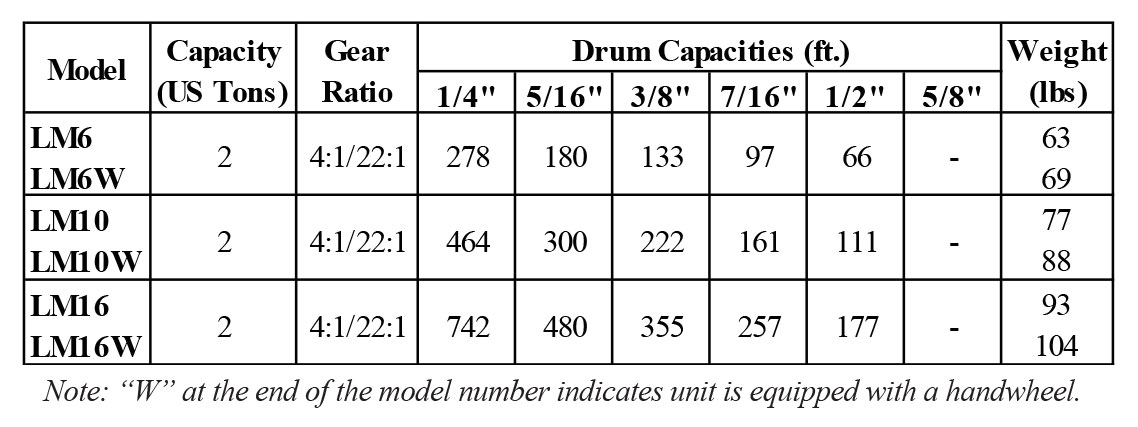

LM Series

Standard Features:

• Cast steel drums and ring gear
• Steel load bearing components, cast steel frames
• Replaceable bronze bushings
• One piece fully adjustable 14″ long steel operating handle with pinion
• Spring loaded holding dog with release handle
• Hand operated, adjustable holding brake
• Easy free spooling
• Two speed gear change offers fast cable take up and easier winching

Options Available:

• 28″ diameter hand wheel
• Hand wheel for units with disc brake handle (SBH)
• Extended shaft pinion 17/16″ x 12″
• Power drive pinion
• Gear covers
• Disc brake handle (SBH)*
• Marine 812 top coat
• Reverse dog assembly
• Drum divider flange

* Disc brake handle incorporates a “Weston style load brake to automatically hold the rated load in lifting applications.
